Crossflow Scrubbers

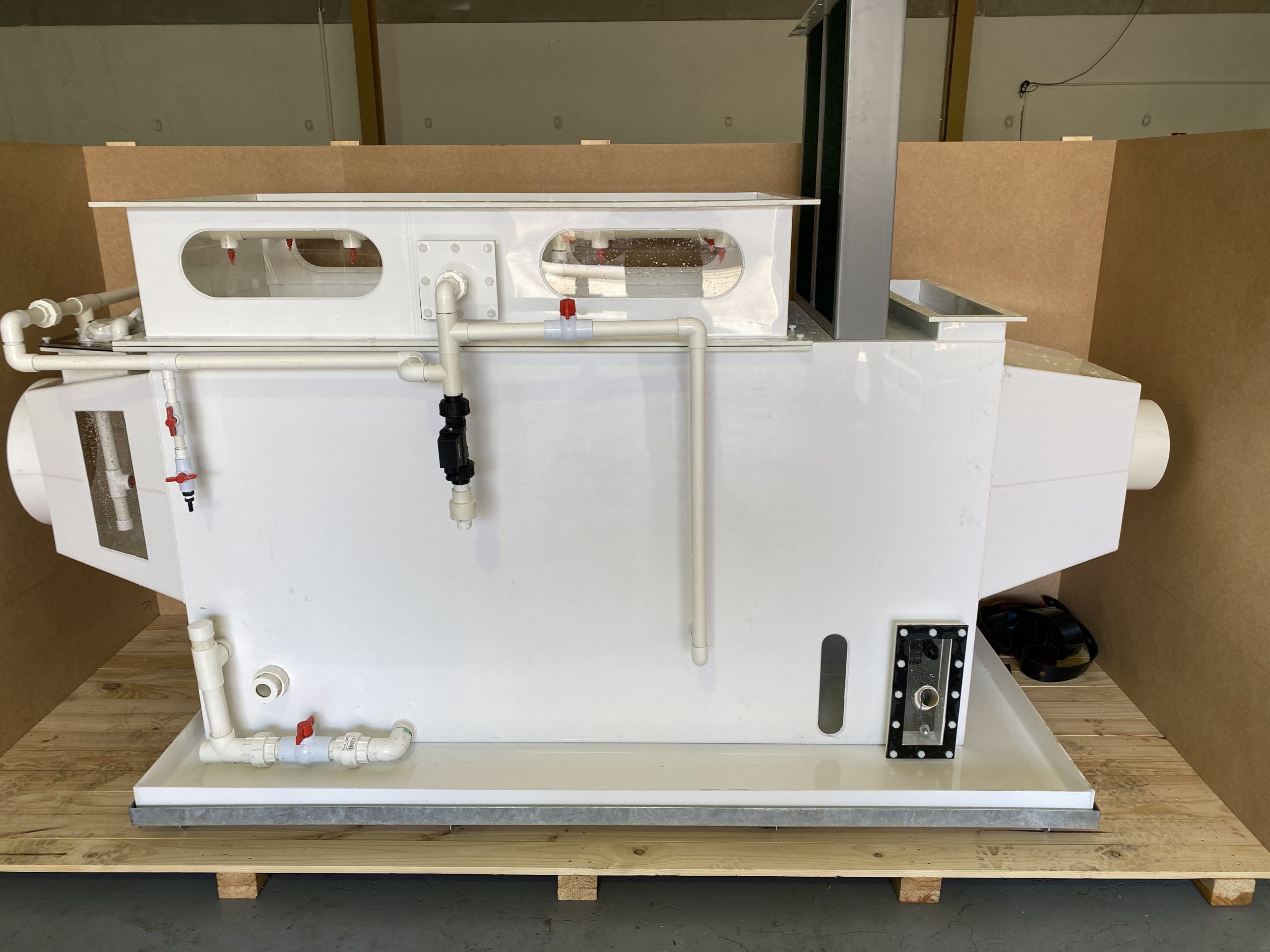

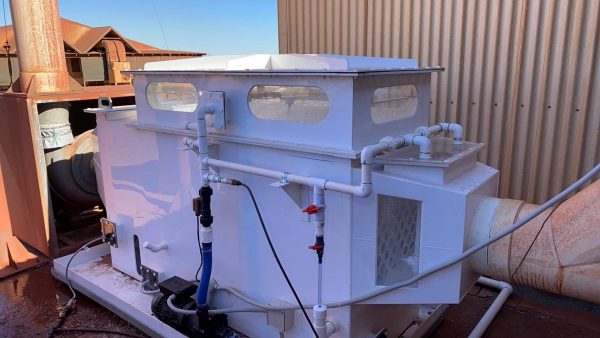

The Crossflow scrubber range is a counter flow horizontally mounted scrubber fabricated in uPVC suitable for chemical resistance. The scrubber helps to scrub contaminated air prior to atmospheric omission from a waterbed interface reaction where contaminated air is neutralised by water droplets attached to random, loosely packed media. The packed media is designed to have a large free volume to minimise static pressure drop through the scrubber with a large surface area to carry countless liquid droplets. The crossflow scrubber has the greater scrubbing Tcapacity but consumes the largest footprint.

Crossflow520 for LabAire 1500
Crossflow720 for LabAire 2000
Crossflow1120 for LabAire 3000

  • Integrated Reservoir
  • 2R Type Tellerette Packed Media
  • uPVC Construction
  • Chemical Resistant Full Cone Spray
  • Mist Elimination Zone
  • Magnetic Drive Pump with Independent Motor Fitted
  • Nominal Residence Time of 1 second
  • Externally Located
  • Liquid-to-gas Ratio of 3
